Denoising Diffusion Probabilistic Models

September 24, 2023

In this note, we will present the core ideas of denosing using diffusion models as first demonstrated in Ho et al. Denoising Diffusion Probabilistic Models

Forward diffusion process

For a given variance schedule \( \beta_1 < \beta_2, … < \beta_T \),

\[\begin{aligned} q(x_t|x_{t-1}) &= \mathcal{N}(x_t; \sqrt{1-\beta_t} x_{t-1},\beta_t \mathbb{I})\\ q(x_{0:T}|x_{0}) &= \prod_{t=1}^T q(x_t|x_{t-1}) \end{aligned}\]

Let \( \alpha_t = 1-\beta_t \) and \( \overline{\alpha}_t = \prod_{i=1}^t \alpha_i \), then

\[\begin{aligned} x_t &= \sqrt{\alpha_t} x_{t-1} + \sqrt{1-\alpha_t} \epsilon_{t-1} \\ &= \sqrt{\alpha_t \alpha_{t-1}} x_{t-2} + \sqrt{1-\alpha_t \alpha_{t-1}} \epsilon_{t-2} \\ &= ...\\ &= \sqrt{\overline{\alpha}_t} x_{0} + \sqrt{1-\overline{\alpha}_t} \epsilon \end{aligned}\]

Reverse diffusion process

The reverse diffusion process \( q(x_{t-1}|x_{t}) \) is approximated with a learned model \(p_\theta\) as below:

\[p_\theta(x_{0:T}) = p(x_T) \prod_{t=1}^T p_\theta(x_{t-1}|x_t) ~~\text{where},~ p_\theta(x_{t-1}|x_t) = \mathcal{N}(x_{t-1},\mu_\theta(x_t,t),\Sigma_\theta(x_t,t))\]

where, \( p(x_T) \sim \mathcal{N}(0,\mathbb{I}) \).

The model parameters can be estimated via log-likelihood \( \mathbb{E}_{q(x_0)}\left[ \log( p_{\theta}(x_0) ) \right] \). It is usually more convenient to replace the log-likelihood optimization with the variational lower bound as:

\[\begin{aligned} \mathbb{E}_{q(x_0)}\left[ \log( p_{\theta}(x_0) ) \right] & \geq \mathbb{E}_{q(x_{0:T})} \left[ \log\left( \frac{q(x_{1:T}|x_0)}{p_{\theta}(x_{0:T})} \right) \right] \\ & = \mathbb{E}_{q}\left[ KL(q(x_T|x_0) || p(x_T)) + \sum_{t=2}^T KL(q(x_{t-1}|x_t,x_0) || p(x_{t-1} || x_t)) -\log(p_{\theta}(x_0|x_1)) \right] \\ & = L_T + \sum_{t=2}^T L_{t-1} + L_0 \end{aligned}\]

It is possible to show that:

\[q(x_{t-1}|x_t,x_0) = \mathcal{N}\left( x_{t-1}; \mu(x_t,x_0), \gamma_t \mathbb{I} \right)\]

where,

\[\begin{aligned} \mu(x_t,x_0) &= \frac{1}{\sqrt{\alpha}_t} \left( x_t - \frac{1-\alpha_t}{\sqrt{1-\overline{\alpha}_t}} \epsilon \right) = \mu(x_t,t)\\ \gamma_t &= \frac{1-\overline{\alpha}_{t-1}}{1-\overline{\alpha}_t} \beta_t \end{aligned}\]

Since \( p(x_{t-1} | x_t) \) is also a Gaussian, then

\[L_t = \mathbb{E}_q \left[ \frac{1}{2 \beta_t^2} \| \mu_{\theta}(x_t,t) - \mu(x_t,t) \|^2 \right]\]

To obtain a neat analytical expression, we need to make the change of variable as:

\[\mu_{\theta}(x_t,t) = \frac{1}{\sqrt{\alpha}_t} \left( x_t - \frac{1-\alpha_t}{\sqrt{1-\overline{\alpha}_t}} \epsilon_\theta(x_t, t) \right)\]

then,

\[\| \mu_{\theta}(x_t,t) - \mu(x_t,t) \|^2 = \frac{(1-\alpha_t)^2}{1-\overline{\alpha}_t} \| \epsilon - \epsilon(\sqrt{\overline{\alpha}_t} x_{0} + \sqrt{1-\overline{\alpha}_t} \epsilon, t) \|^2\]

Implementation

We provide here a simple tutorial code for two moons distribution:

import math
import torch
import torch.nn as nn
import torch.nn.functional as F
import matplotlib.pyplot as plt
from sklearn.datasets import make_moons

device = "cuda" if torch.cuda.is_available() else "cpu"

# DDPM schedule
T = 500
betas = torch.linspace(1e-4, 0.02, T, device=device)
alphas = 1.0 - betas

# alpha_bar[0] = 1
alpha_bar = torch.cat([torch.ones(1, device=device),torch.cumprod(alphas, dim=0)])

# dataset
def get_batch(n=512):
    x, _ = make_moons(n_samples=n, noise=0.05)
    x = torch.tensor(x,dtype=torch.float32,device=device)

    # normalize for more stable training
    x = (x - x.mean(0)) / x.std(0)

    return x

# sinusoidal timestep embedding
EMB_DIM = 64
half = EMB_DIM // 2
freqs = torch.exp(-torch.arange(half, device=device)* math.log(10000)/ (half - 1))

def timestep_embedding(t):
    args = t[:, None].float() * freqs[None] # t: (batch,)

    return torch.cat([torch.sin(args), torch.cos(args)],dim=-1)

# epsilon predictor
class EpsNet(nn.Module):

    def __init__(self, data_dim=2, t_dim=EMB_DIM, hidden=128):
        super().__init__()

        self.net = nn.Sequential(
            nn.Linear(data_dim + t_dim, hidden),
            nn.SiLU(),
            nn.Linear(hidden, hidden),
            nn.SiLU(),
            nn.Linear(hidden, hidden),
            nn.SiLU(),
            nn.Linear(hidden, data_dim)
        )

    def forward(self, x, t):
        t_emb = timestep_embedding(t)
        return self.net(torch.cat([x, t_emb], dim=-1))

model = EpsNet().to(device)
opt = torch.optim.Adam(model.parameters(), lr=1e-3)

# forward process
def q_sample(x0, t, eps=None):

    if eps is None:
        eps = torch.randn_like(x0)

    ab = alpha_bar[t][:, None]
    xt = ab.sqrt() * x0 + (1 - ab).sqrt() * eps

    return xt

# training
for step in range(5000):

    x0 = get_batch()

    # sample timestep uniformly
    t = torch.randint(1, T + 1, (x0.shape[0],), device=device)

    eps = torch.randn_like(x0)
    xt = q_sample(x0, t, eps)
    eps_pred = model(xt, t)
    loss = F.mse_loss(eps_pred,eps)

    opt.zero_grad()
    loss.backward()
    opt.step()

    if step % 1000 == 0:
        print(f"step {step:5d} loss {loss.item():.4f}")

# visualize forward diffusion
@torch.no_grad()
def plot_forward_process():

    x0 = get_batch(2000)

    timesteps = [0, int(T/20), int(T/10), int(T/5), int(T)]
    fig, axes = plt.subplots(1,len(timesteps),figsize=(15, 3))

    for ax, t in zip(axes, timesteps):
        tt = torch.full((len(x0),), t, device=device, dtype=torch.long)
        xt = q_sample(x0, tt)
        xt = xt.cpu()
        ax.scatter(xt[:, 0], xt[:, 1], s=2)
        ax.set_title(f"t={t}")
        ax.axis("equal")
        ax.axis("off")

    plt.tight_layout()
    plt.show()

plot_forward_process()

# reverse process
@torch.no_grad()
def sample(n=2000):

    model.eval()

    x = torch.randn(n, 2, device=device)

    for t in reversed(range(1, T + 1)):

        tt = torch.full((n,), t, device=device, dtype=torch.long)
        eps_pred = model(x,tt)

        beta_t = betas[t - 1]
        alpha_t = alphas[t - 1]
        ab_t = alpha_bar[t]
        ab_prev = alpha_bar[t - 1]

        mean = (x- beta_t/ torch.sqrt(1 - ab_t)* eps_pred) / torch.sqrt(alpha_t)

        if t > 1:
            posterior_var = (1 - ab_prev)/ (1 - ab_t)* beta_t
            noise = torch.randn_like(x)
            x = mean+ torch.sqrt(posterior_var)* noise
        else:
            x = mean

    model.train()

    return x.cpu()

# generate samples
samples = sample()

plt.figure(figsize=(6, 6))
plt.scatter(samples[:, 0], samples[:, 1], s=4)
plt.axis("equal")
plt.title("DDPM samples")
plt.show()

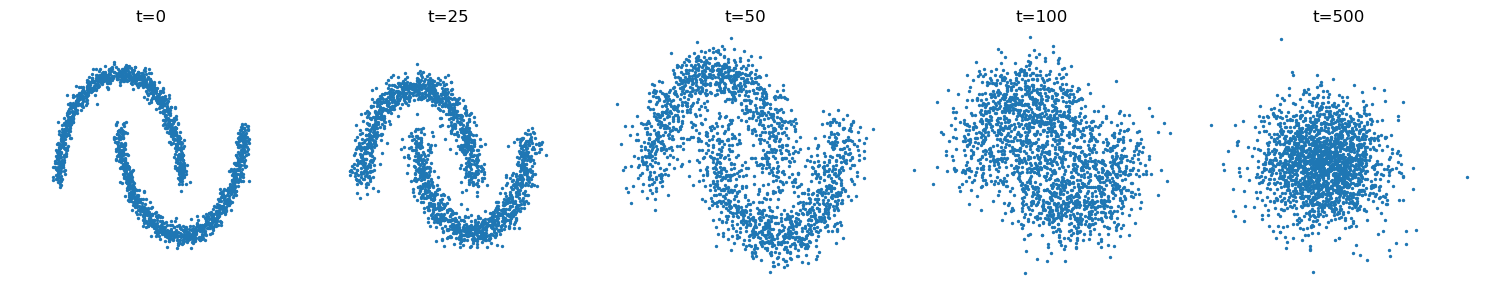

Below is the result for the forward process:

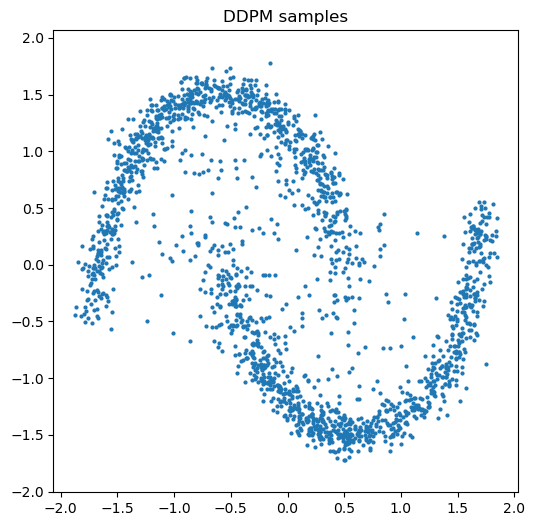

and, here is the result for reverse process:
