simple RealNVP normalizing flow implementation.
convention (matches the corrected blog notes):
f : data x -> latent z (this is what the network computes)
z = f(x), with z ~ N(0, I) as the prior p_z
density via change of variables:
log p_x(x) = log p_z(f(x)) + log|det J_f(x)|
a RealNVP affine coupling layer (with binary mask b):
z = x * exp((1-b) * s(b*x)) + (1-b) * t(b*x)
log|det J| = sum( (1-b) * s(b*x) )
inverse (for sampling):
x = (z - (1-b)*t(b*z)) * exp(-(1-b)*s(b*z))
"""
import torch
import torch.nn as nn
import numpy as np
from sklearn.datasets import make_moons
import matplotlib.pyplot as plt
torch.manual_seed(0)
np.random.seed(0)
DIM = 2
class CouplingLayer(nn.Module):
"""one affine coupling layer with a fixed binary mask b."""
def __init__(self, mask, hidden=128):
super().__init__()
self.register_buffer("mask", mask) # shape (DIM,), entries in {0,1}
# s and t share an architecture; each maps R^DIM -> R^DIM
self.s_net = nn.Sequential(
nn.Linear(DIM, hidden), nn.ReLU(),
nn.Linear(hidden, hidden), nn.ReLU(),
nn.Linear(hidden, DIM), nn.Tanh(), # tanh keeps scales stable
)
self.t_net = nn.Sequential(
nn.Linear(DIM, hidden), nn.ReLU(),
nn.Linear(hidden, hidden), nn.ReLU(),
nn.Linear(hidden, DIM),
)
def forward(self, x):
"""x -> z (data to latent). Returns z and log|det J|."""
b = self.mask
x_masked = x * b
s = self.s_net(x_masked) * (1 - b)
t = self.t_net(x_masked) * (1 - b)
z = x * torch.exp(s) + t
log_det = s.sum(dim=1) # sum over the transformed coords
return z, log_det
def inverse(self, z):
"""z -> x (latent to data), the exact inverse of forward."""
b = self.mask
z_masked = z * b
s = self.s_net(z_masked) * (1 - b)
t = self.t_net(z_masked) * (1 - b)
x = (z - t) * torch.exp(-s)
return x
class RealNVP(nn.Module):
"""stack of coupling layers with alternating masks."""
def __init__(self, n_layers=6, hidden=128):
super().__init__()
masks = []
for i in range(n_layers):
# alternate which coordinate is passed through
m = torch.tensor([i % 2, (i + 1) % 2], dtype=torch.float32)
masks.append(m)
self.layers = nn.ModuleList(CouplingLayer(m, hidden) for m in masks)
# standard normal prior p_z
self.register_buffer("prior_mean", torch.zeros(DIM))
self.register_buffer("prior_std", torch.ones(DIM))
def forward(self, x):
log_det_total = torch.zeros(x.shape[0], device=x.device)
z = x
for layer in self.layers:
z, ld = layer(z)
log_det_total += ld
return z, log_det_total
def inverse(self, z):
x = z
for layer in reversed(self.layers):
x = layer.inverse(x)
return x
def log_prob(self, x):
z, log_det = self.forward(x)
# log p_z(z) for standard normal
log_pz = (-0.5 * (z ** 2) - 0.5 * np.log(2 * np.pi)).sum(dim=1)
return log_pz + log_det # change-of-variables formula
def sample(self, n):
z = torch.randn(n, DIM)
return self.inverse(z)
def main():
# data
X, _ = make_moons(n_samples=3000, noise=0.05)
X = (X - X.mean(0)) / X.std(0) # standardize
X = torch.tensor(X, dtype=torch.float32)
model = RealNVP(n_layers=6, hidden=128)
opt = torch.optim.Adam(model.parameters(), lr=1e-3)
# train: maximize log-likelihood = minimize negative log-likelihood
n_epochs = 10000
for epoch in range(n_epochs):
opt.zero_grad()
loss = -model.log_prob(X).mean()
loss.backward()
opt.step()
if (epoch + 1) % 500 == 0:
print(f"epoch {epoch+1:4d} nll = {loss.item():.4f}")

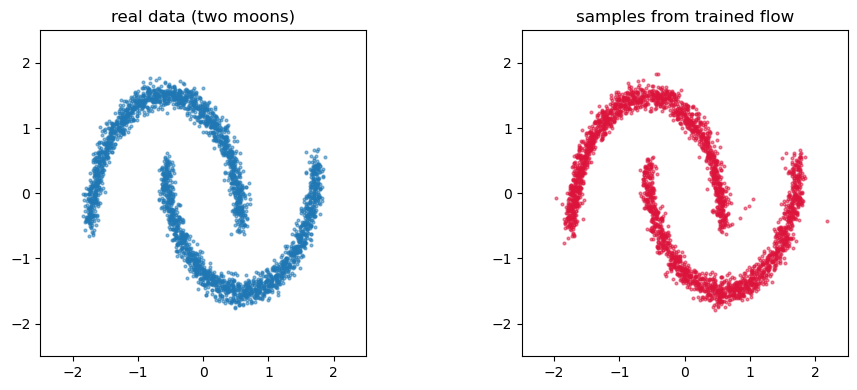

# visualize: real data vs. samples drawn from the flow
with torch.no_grad():
samples = model.sample(3000).numpy()
fig, ax = plt.subplots(1, 2, figsize=(10, 4))
ax[0].scatter(X[:, 0], X[:, 1], s=4, alpha=0.5)
ax[0].set_title("real data (two moons)")
ax[1].scatter(samples[:, 0], samples[:, 1], s=4, alpha=0.5, color="crimson")
ax[1].set_title("samples from trained flow")
for a in ax:
a.set_xlim(-2.5, 2.5); a.set_ylim(-2.5, 2.5); a.set_aspect("equal")
plt.tight_layout()
plt.show()
# sanity check
with torch.no_grad():
z, _ = model.forward(X[:5])
x_rec = model.inverse(z)
err = (x_rec - X[:5]).abs().max().item()
print(f"max reconstruction error (x -> z -> x): {err:.2e}")
if __name__ == "__main__":
main()
